Eddy Current Separator


      Non Ferrous Separator






      Eddy current separator is a highly efficient metal separation equipment, widely used in waste recycling, mining and circular economy. It uses the principle of eddy current to quickly separate non-ferrous metals (such as aluminum, copper, etc.)





























      Eddy Current Separator






      • Details
        •
















        DESCRIPTION
        Eddy Current Separator is a kind of equipment used for metal separation and recycling, which is widely used in waste treatment, mining, recycling industry and other fields. Its working principle is based on the eddy current effect. When the conductive metal material passes through a strong magnetic field, eddy current will be generated inside the metal, which will cause the metal object to be subjected to repulsive or attractive force. The action of this force enables different types of metal materials to be effectively separated.

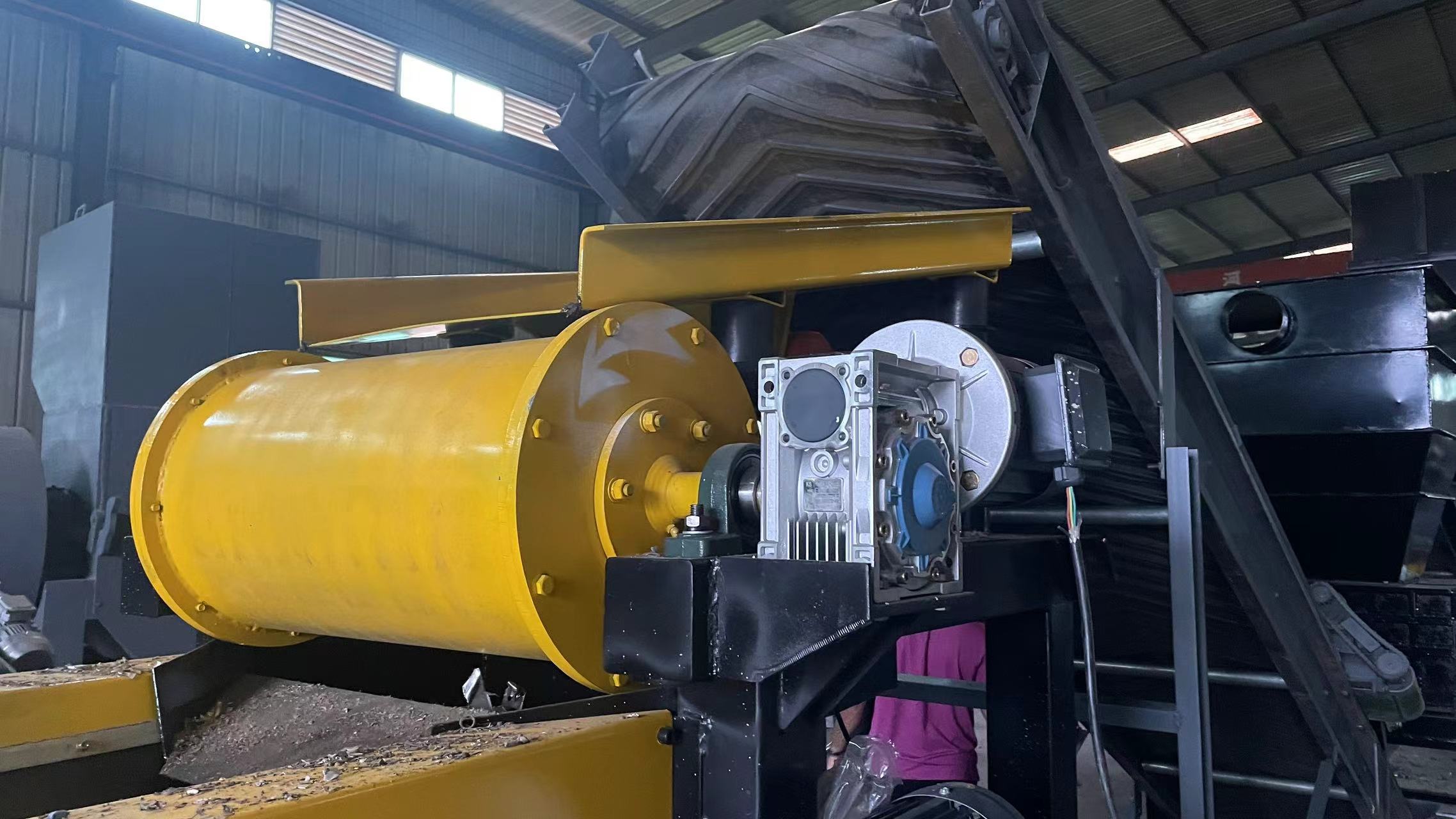

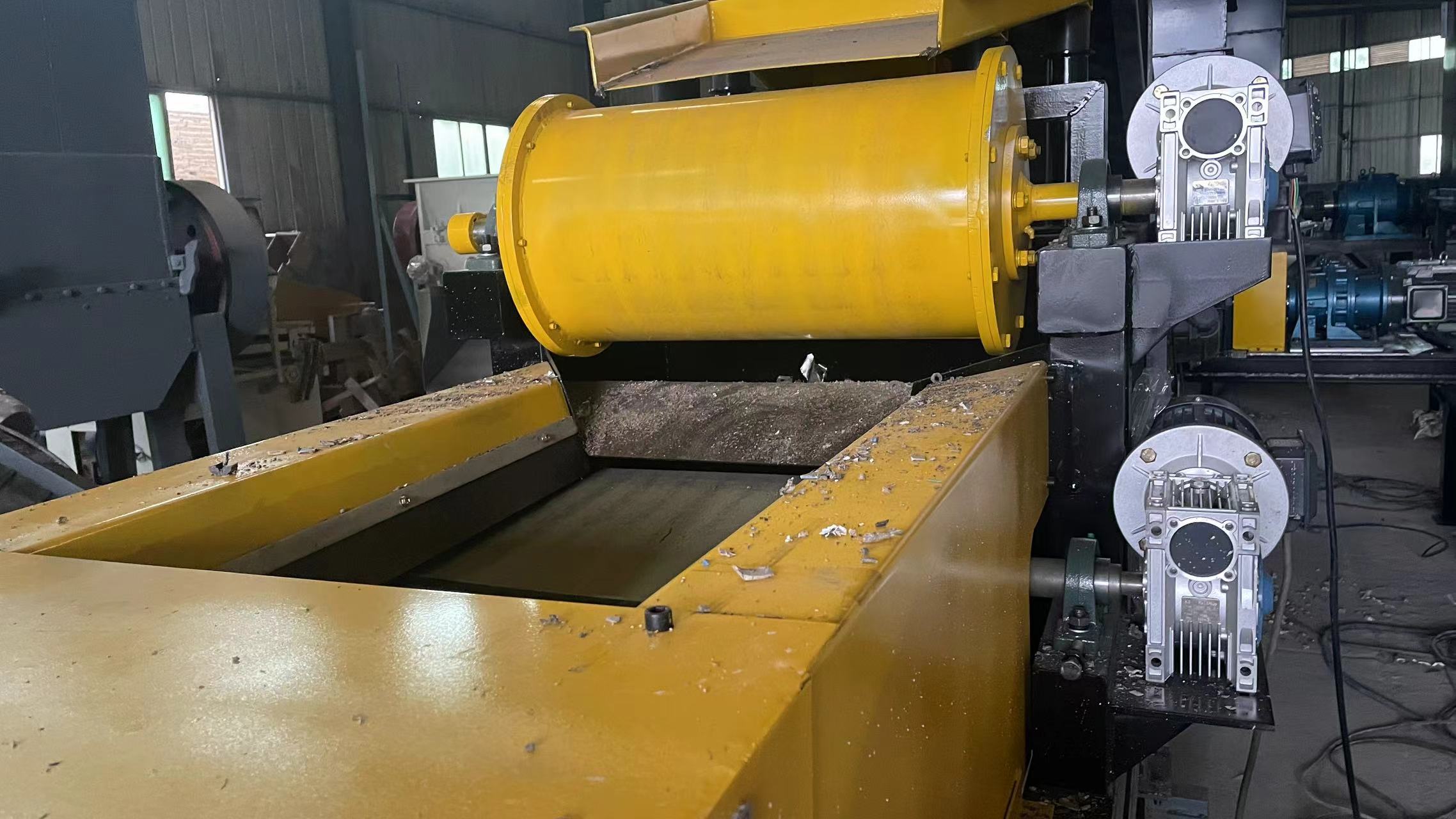

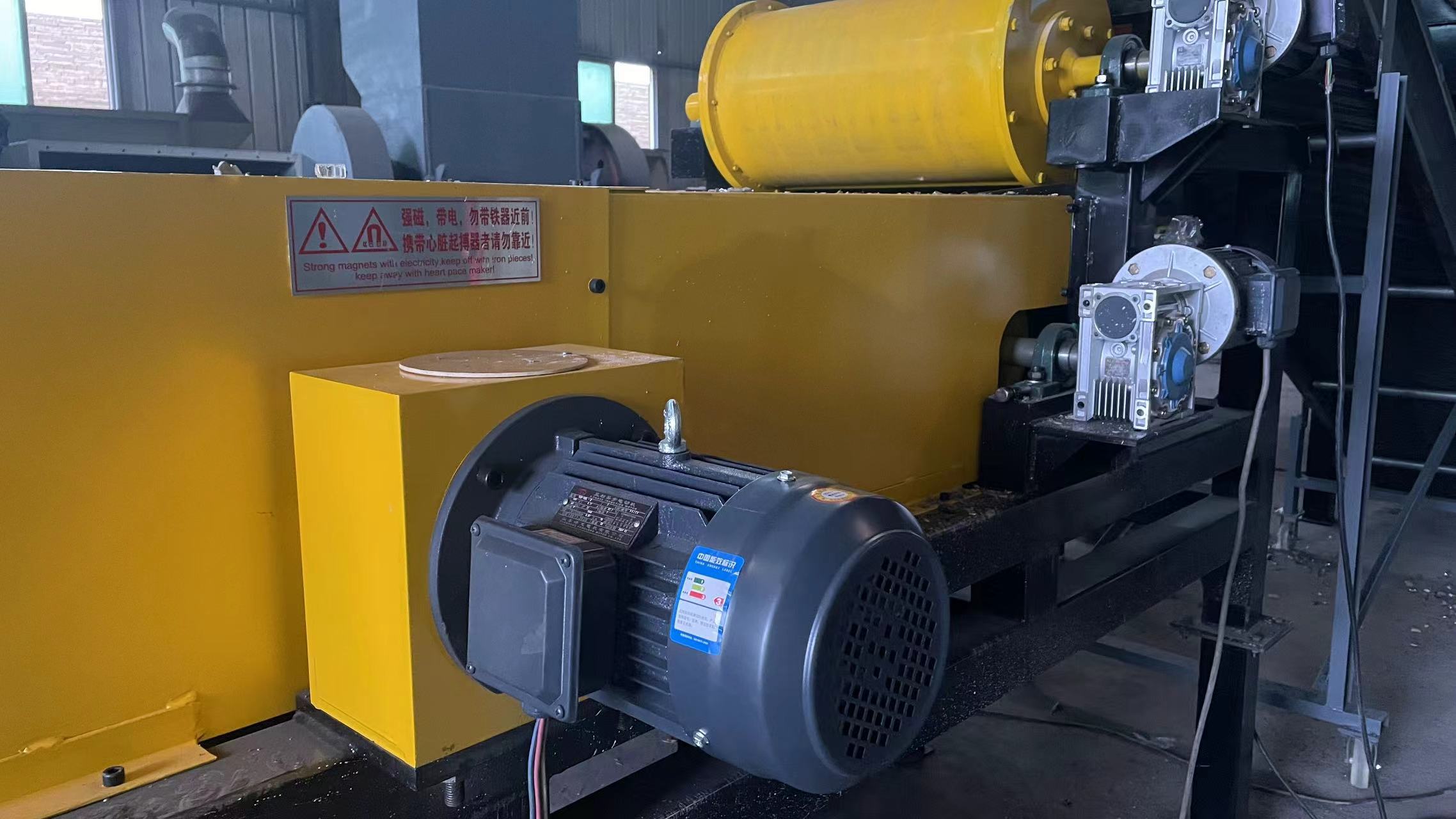

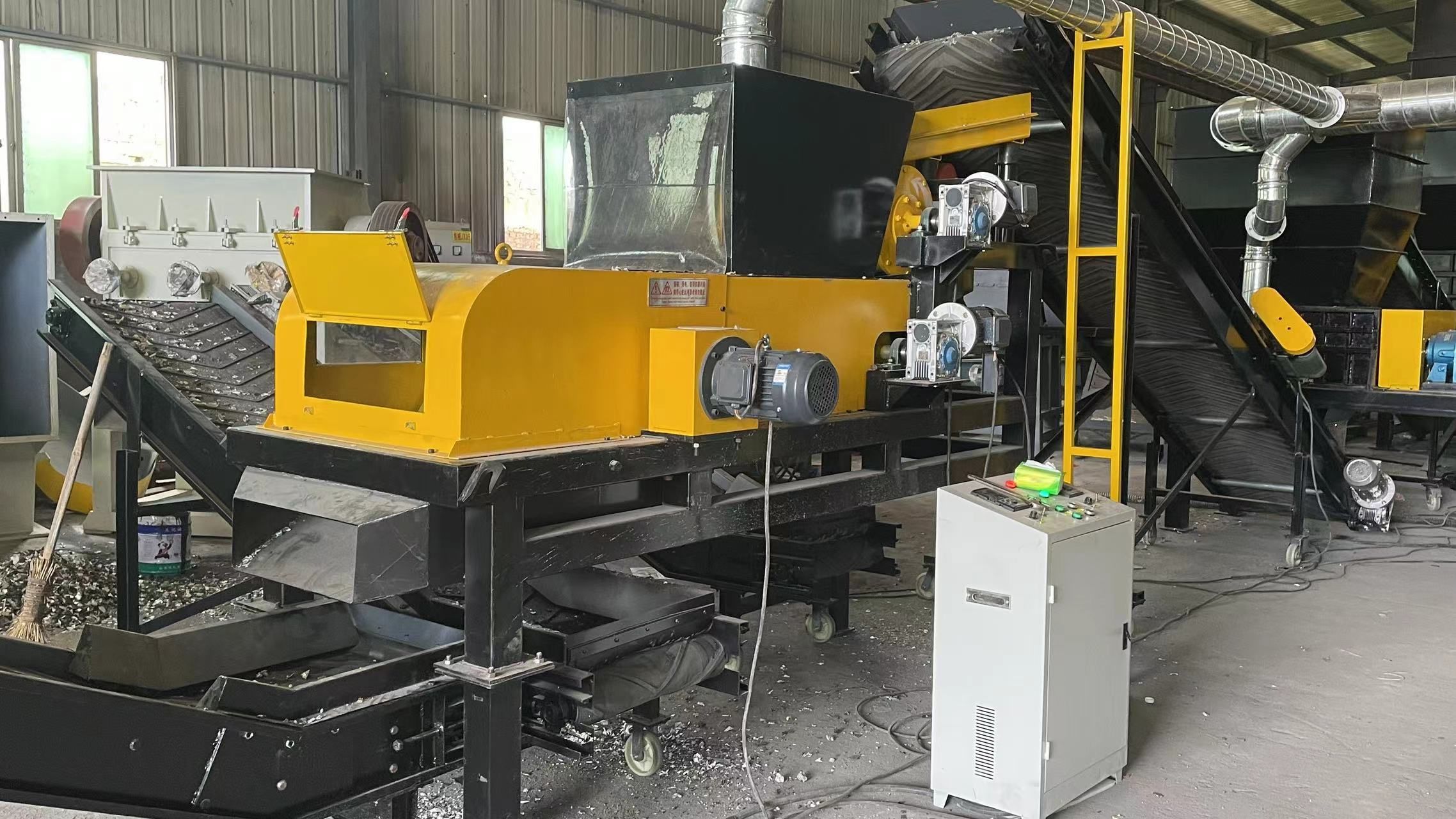

        The main components of the eddy current separator include magnetic source, conveyor belt and control system. The equipment transports the materials to be separated to the magnetic field area through the conveyor belt. The metal materials are affected by the eddy current in this area and then separated into different collection areas. The equipment can efficiently separate non-ferrous metals such as aluminum, copper, stainless steel and other non-ferrous or ferromagnetic materials, and has the advantages of simple operation, high sorting efficiency and low energy consumption.

        APPLICATION
        Waste copper (aluminum) power cables, aluminum products, automobile scraps, non-ferrous metal fragments, circuit board crushing materials, glass slag containing non-ferrous metals, electronic waste, multi-metal (copper, aluminum, zinc) mixtures, metals after burning of garbage Slag, plastic and metal mixed materials, etc

        SPECIFICATION

        型號
        Model
        帶寬
        Belt Width
        (mm)
        驅動功率
        Power
        (kw)
        處理能力
        Capacity
        (m3/h)
        外形尺寸
        Dimension
        A×B×C（mm）
        重量
        Weight
        （kg）
        MX-400
        400
        3.0+1.1+0.12
        1-3
        3000×1300×1650
        780
        MX-600
        600
        4.0+1.5+0.12
        5
        3000×1550×1650
        1100
        MX-800
        800
        5.5+1.5+0.18×2
        7.5
        3000×1750×1650
        1200
        MX-1000
        1000
        5.5+1.5+0.18×2
        9
        3200×1960×1650
        1400
        MX-1200
        1200
        7.5+2.2+0.18×2
        12
        3300×2120×1650
        1500
        The bracket height can be adjusted





















































































































                Jiangxi Mingxin Metallurgy Equipment Co., Ltd
