Product Overview

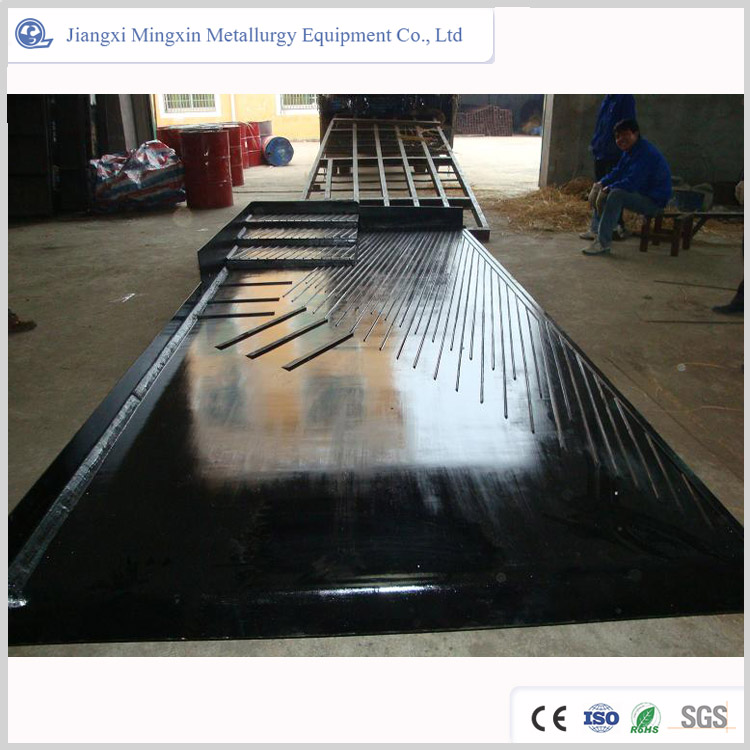

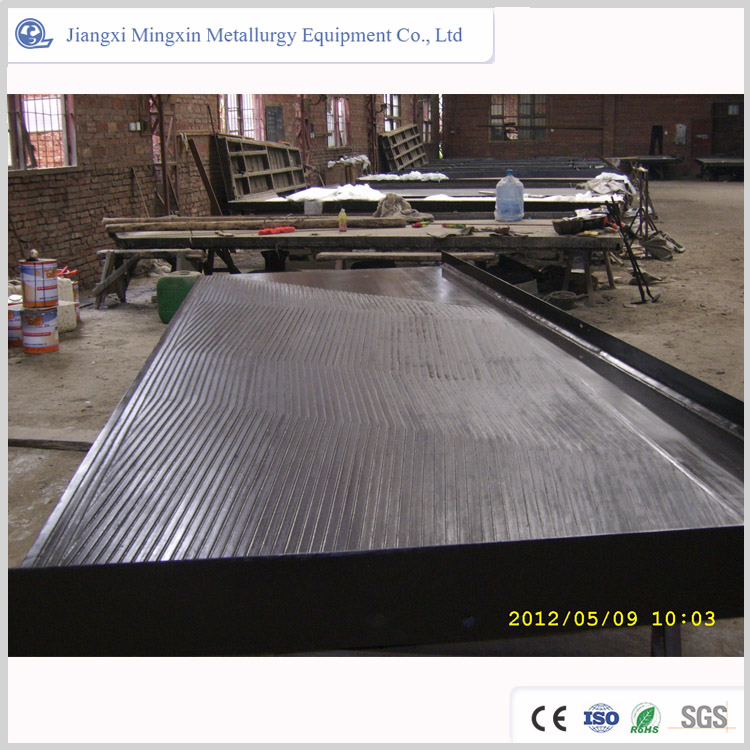

Gold shaking tables also known as gold shakers, or gold separation tables, is a fine gold recovery equipment common in the gold shaker wash plant, alluvial gold mining plant to separate concentrates, medium concentrates, and tailings according to material density, and grain size.
Gold mining shaker table can not only be used as an independent beneficiation machine, but it often works with jig machines, centrifugal concentrators, sluice boxes, flotation equipment, magnetic drum separators, spiral classifiers, and other ore dressing equipment.
Type
- Seated table and suspended table
- Single-layer shaker and multi-layer shaker
- Coarse particle (2~0.5mm), fine gold (0.5~0.2mm)
- RP4 shaker table, 6-s shaker
- Industrial shaker table, mini gold shaker table, lab shaker table, portable shaker table
Table surface materials Glass-reinforced plastics (glass fiber reinforced polyester resin) and aluminum alloy (laboratory use).
Gold shaker table for sale- 1.High efficiency, separates the gold concentrate and tailings simultaneously.
- 2. Easy to install, operation, and maintenance
- 3. Adjustable stroke length and speed
- 4. Low investment, long service life
- 5. Flexible and portable.
Specification
| Deck Type | Unit | Course Sand | Fine Sand | Slime Deck | Three Different Kinds of Decks Are Available |
| Beneficiation Area | m2 | 7.6 | 7.6 | 7.6 | 4.08 | 1.95 | 0.5 |
| Deck Size | Length | mm | 4450 | 4450 | 4450 | 3000 | 2100 | 1100 |
| Transmission End Width | mm | 1855 | 1855 | 1855 | 1320 | 1050 | 500 |
| Concentrate End Width | mm | 1546 | 1546 | 1546 | 1100 | 850 | 430 |
| Maximum Feeding Size | mm | 2 | 0.5 | 0.15 | 0.1-2 | 0.074-2 | 0.074-2 |
| Process Capacity | T/H | 1.5-2 | 0.8-1.5 | 0.5-0.8 | 0.4-1.5 | 0.3-0.8 | 0.05-0.2 |
| Feeding Density | % | 25-30 | 20-25 | 15-25 | 10-30 |
| Stroke | mm | 16-22 | 11-16 | 8-16 | 6-30 | 12-28 | 9-17 |
| Frequency | f | 45-48 | 18-53 | 50-57 | 210-320 | 250-450 | 280-460 |
| Water Added | T/D, T/H | 80-150 T/D | 30-60 T/D | 10-17 T/D | 0.3-1.5 T/H | 0.2-1 T/H | 0.1-0.5 T/H |
| Transverse Slope of Deck | ° | 2° 30-4° 30 | 1° 30-3° 30 | 1° -2° | 0 -10° | 0 -8° | 0 -10° |
| Longitudinal Slope of Deck | ° | 1.4 | 1.4 | 0.92 | —— | —— | —— |
| Cross-section Shape of Deck | | Rectangular | Sawtooth | Triangle | Available rectangular, sawtooth, triangle |
| Motor Power | KW | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 |
